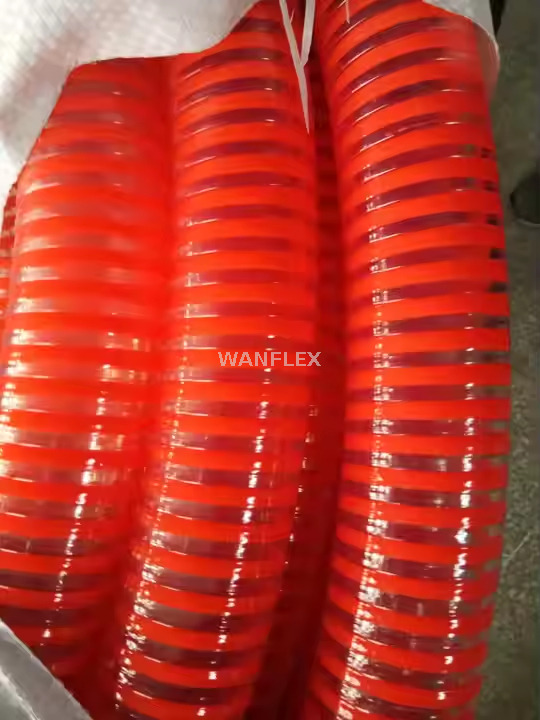

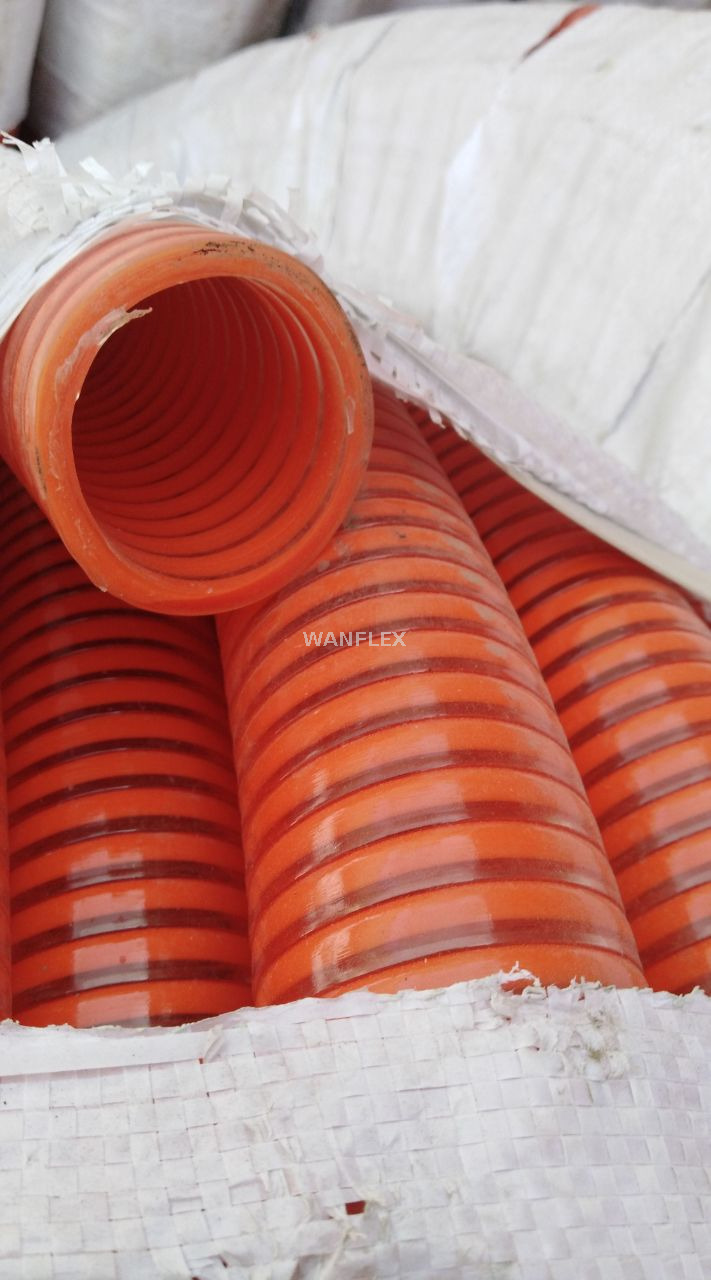

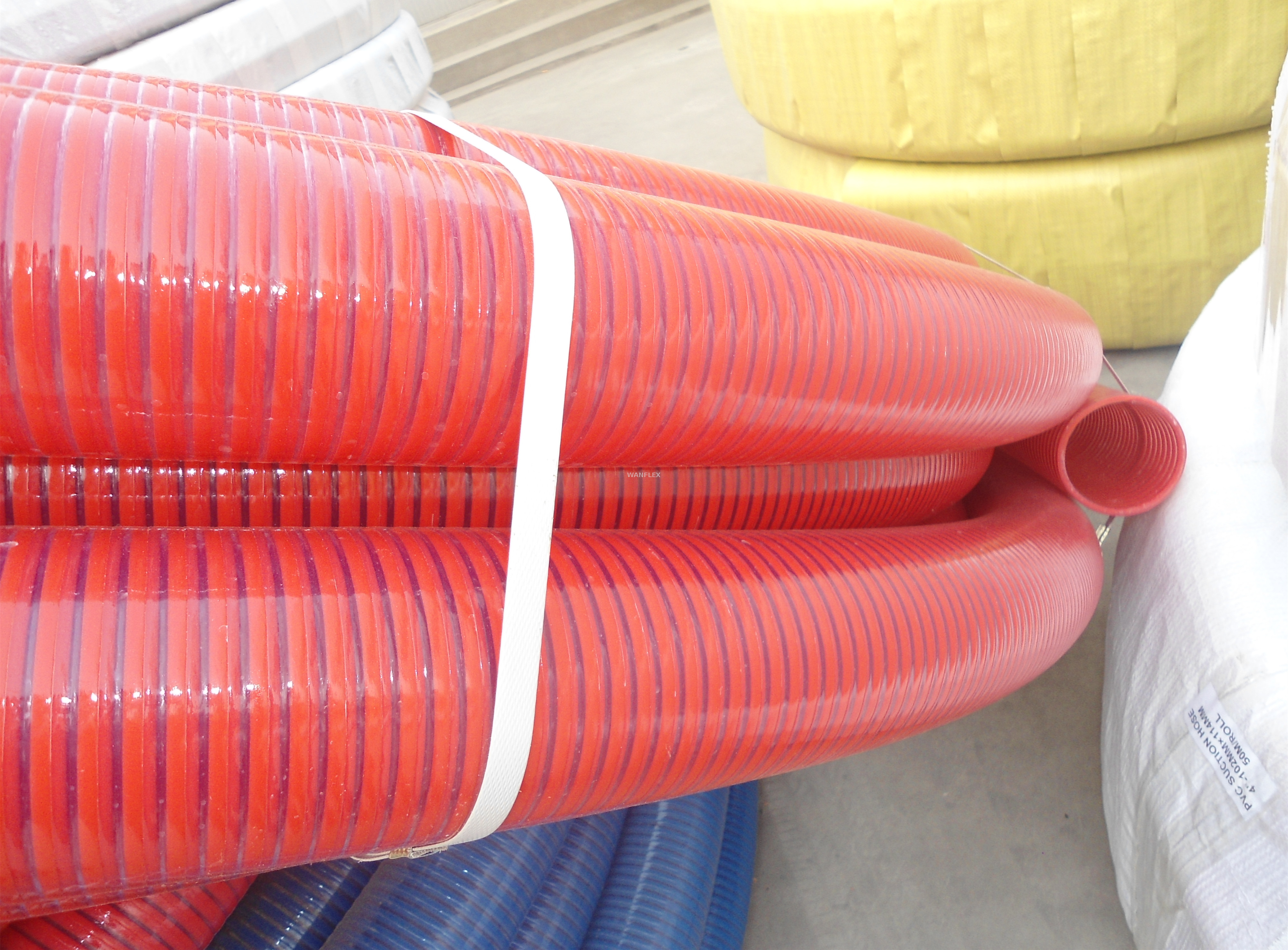

VISIBLE SPIRAL PVC WINE HOSE

You are here: Home » PLASTIC HOSE » PVC Suction Hose » VISIBLE SPIRAL PVC WINE HOSE

Related Products

PVC steel wire hose-Anti static fiber braided for water pump

PVC Steel Wire Hose

Fiber Reinforced PVC Steel Wire Hose

Construction: High quality PVC with rigid PVC Helix, non smell

Application: ideal solution for suciton and delivery of beverages with alcohol conventration up to 20%. Suggested for wine, marc, vinegar and food liquids

Temperature: -10℃ to 65℃

Size range: 3/4" to 6"

PVC WINE HOSE PVC SUCTION HOSE SPIRAL SUCTION HOSE PVC water hose RED PVC SUCTION HOSE

SIZE	ID	OD	W.P.	B.P.	LENGTH	WEIGHT
Inch	mm	mm	Bar	Bar	m/roll	g/meter
3/4"	19	25	8	24	30	280
1"	25	31	8	24	30	350
1-1/4"	32	40	8	24	30	500
1-1/2"	38	48	8	24	30	750
2"	50	58	7	21	30	920
2"	50	60	8	24	30	1050
2-1/2"	63	73	6	18	30	1300
3"	75	85	5	15	30	1650
3"	75	87	6	18	30	1900
4"	100	114	5	15	30	3200
4"	100	116	6	18	30	3700
5"	125	139	4	12	20	3600
5"	125	141	4	12	20	4000
6"	152	170	4	12	10	7200

Availability:



Inquire Add to Basket
