FUEL DROP HOSE

Availability:
  • WANFLEX

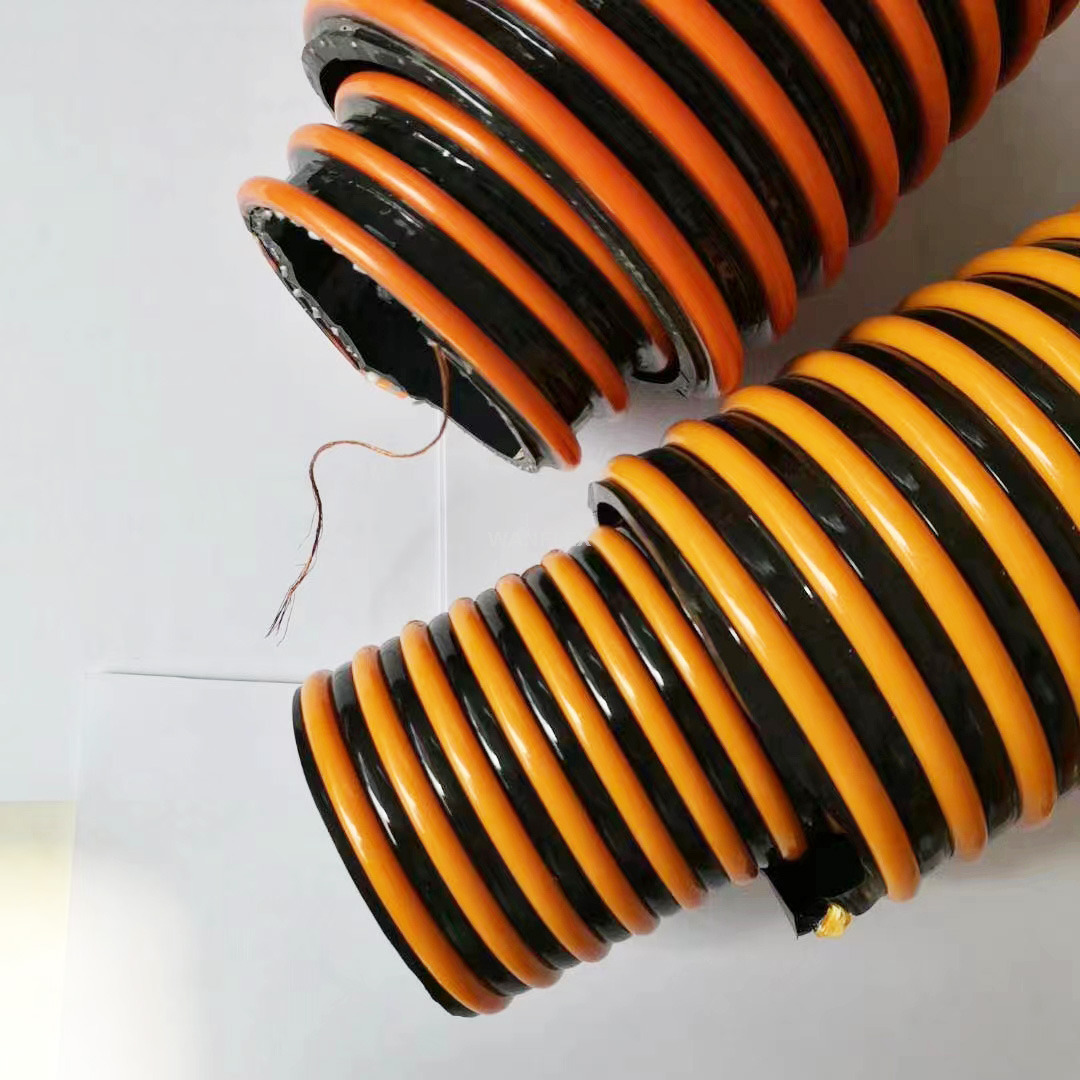

FUEL DROP HOSE


  • Inner Tube: Smooth and oil resistant specially blended nitrile(NBR) rubber tube

  • Reinforcement: embedded polyester yarn fabric and grounding cooper wire

  • Cover: Corrugated PVC rigid

  • Temperature range: -20 ℃ up to +65 ℃

  • Application: mainly used for tank truck gravity drop fuel transfer to handle gasoline, diesel, ethanol




Characteristic:

  1. Durable construction- designed with high tensile strength polyester yarn fabric reinforcement

  2. Easy to handle-lighter weight and greater flexibility than conventional rubber drop hose

  3. Easy to install with fitting and tank truck

  4. static dissipating tube-specially formulated to help prevent the build-up of static electricity for added safety


FUEL DROP HOSE

SIZE

ID

OD

W.P.

B.P.

BEND RADIUS

LENGTH

WEIGHT

Inch

mm

mm

Bar

Bar

M

m/roll

g/meter

2"

51

66

8

24

0.4

30

1210

2-1/2"

63

77

7

21

0.5

30

1720

3"

76.2

92

6

18

0.53

30

2230

4"

102

121

6

18

0.65

30

3140

5"

127.5

152.0

5

15

0.75

20

4550

6"

154.5

180.5

5

15

1.2

10

5850

8"

203.5

232

4

12

1.6

10

8450
